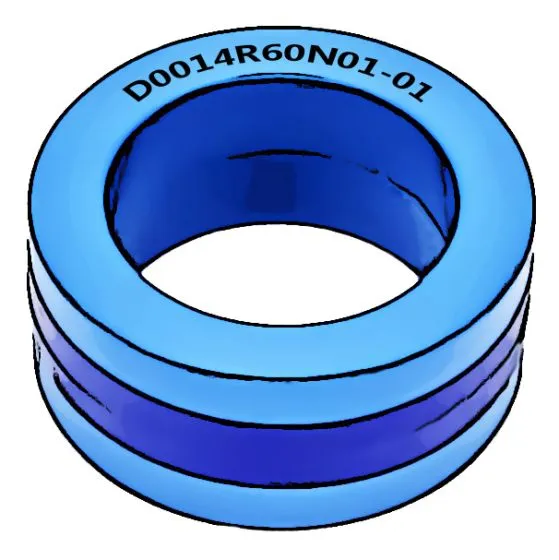

D0014R60N01-01

Varenummer
D0014R60N01-01
Datasheet
Beskrivelse
Specification
  • This round core has a permeability of 60000.
  • Core dimensions are: Outer dimension 14 mm, inner dimension 9,5 mm and the height is 4 mm.
  • Case dimensions are: Outer dimension 17 mm, Inner dimension 8 mm and the height is 6,5 mm.
  • Isat = 0,5 A

  • There are 990 pcs. in a box
  • Weight: One pcs. is 2 grams.





Disclaimer: Values are nominal and are subject to change.

Specifikation
House/Shape Round Plastic
Outer diameter OD (mm) 17
Inner diameter ID (mm) 8
Height mm 6.5
Permeability 60000
Saturation Current Peak 0.5
