D0016R60N01-01
Varenummer
D0016R60N01-01
Datasheet
Beskrivelse
Specification
Morten Monberg
Business Development Manager
Phone: + 45 73 70 76 41
Email: mmo@dovitech.dk
Morten har en teknisk bagrund, og har i mere end 30 år arbejdet med induktive komponenter, magnetiske materialer, special legeringer og ædelmetaller. Han sidder klar til at hjælpe dig, og kommer gerne med gode råd.

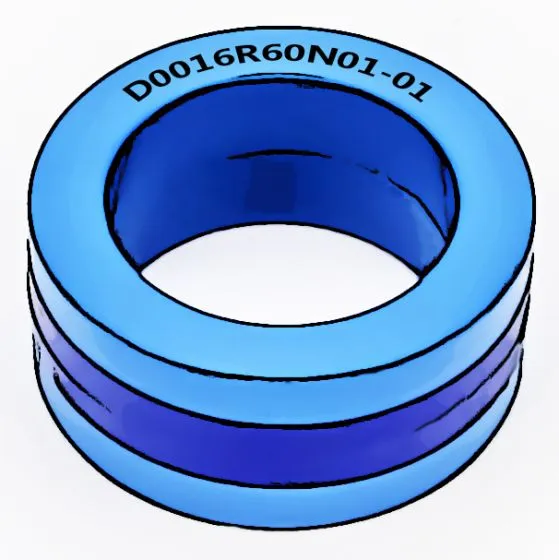

- This Round Core has a permeability of 60000.
- Core dimensions are: Outer dimension 16 mm, inner dimension 10 mm and the height is 6 mm.
- Case dimensions are: Outer dimension 18 mm, Inner dimension 8 mm and the height is 8.2 mm.
- Isat = 1 A
- There are 990 pcs. in a box
- Weight: One pcs. is 5 grams.
Disclaimer: Values are nominal and are subject to change.
| House/Shape | Round Plastic |
|---|---|
| Outer diameter OD (mm) | 18 |
| Inner diameter ID (mm) | 8 |
| Height mm | 8.2 |
| Permeability | 60000 |
| Saturation Current Peak | 1 |
