D0020R04N01-01
Varenummer
D0020R04N01-01
Datasheet
Beskrivelse
Specification
Morten Monberg
Business Development Manager
Phone: + 45 73 70 76 41
Email: mmo@dovitech.dk
Morten har en teknisk bagrund, og har i mere end 30 år arbejdet med induktive komponenter, magnetiske materialer, special legeringer og ædelmetaller. Han sidder klar til at hjælpe dig, og kommer gerne med gode råd.

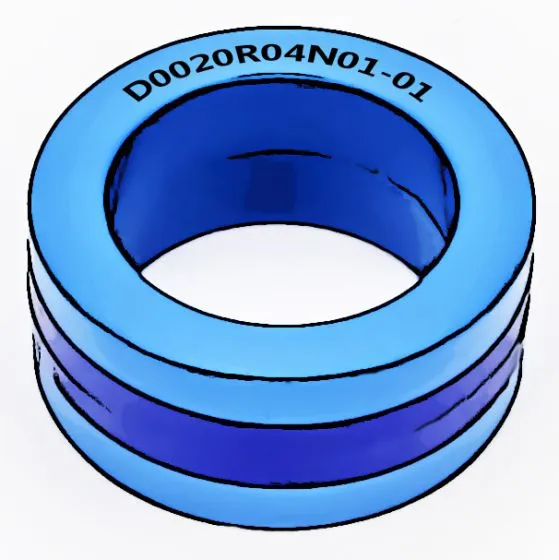

- This round core has a permeability of 4000.
- Core dimensions are: Outer dimension 20 mm, inner dimension 12 mm and the height is 8 mm.
- Case dimensions are: Outer dimension 22 mm, Inner dimension 10 mm and the height is 10.2 mm.
- Isat = 10 A
- There are 990 pcs. in a box
- Weight: One pcs. is 10 grams.
Disclaimer: Values are nominal and are subject to change.
| House/Shape | Round Plastic |
|---|---|
| Outer diameter OD (mm) | 23.5 |
| Inner diameter ID (mm) | 10.2 |
| Height mm | 10.2 |
| Permeability | 4000 |
| Saturation Current Peak | 10 |
