D0025R90N01-01

Varenummer
D0025R90N01-01
Datasheet
Beskrivelse
Specification

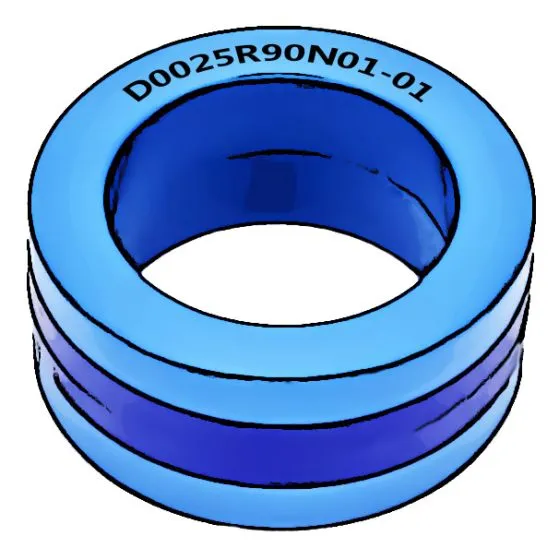

  • This Round Core has a permeability of 90000.
  • Core dimensions are: Outer dimension 25 mm, inner dimension 16 mm and the height is 10 mm.
  • Case dimensions are: Outer dimension 29 mm, Inner dimension 13 mm and the height is 13.5 mm.
  • Isat = 0.6 A

  • There are 378 pcs. in a box
  • Weight: One pcs. is 18 grams.





*Disclaimer: Values are nominal and are subject to change.

Specifikation
House/Shape Round Plastic
Outer diameter OD (mm) 29
Inner diameter ID (mm) 13
Height mm 13.5
Permeability 90000
Saturation Current Peak 0.6
