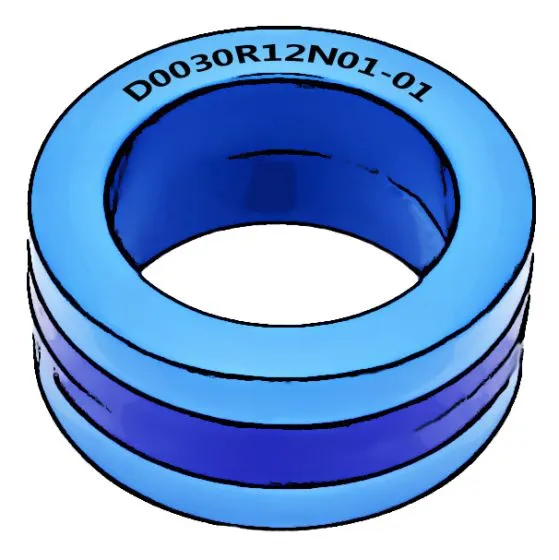

D0030R12N01-01
Varenummer
D0030R12N01-01
Datasheet
Beskrivelse
Specification
Morten Monberg
Business Development Manager
Phone: + 45 73 70 76 41
Email: mmo@dovitech.dk
Morten har en teknisk bagrund, og har i mere end 30 år arbejdet med induktive komponenter, magnetiske materialer, special legeringer og ædelmetaller. Han sidder klar til at hjælpe dig, og kommer gerne med gode råd.
- This Round Core has a permeability of 12000.
- Core dimensions are: Outer dimension 30mm, inner dimension 20mm and the height is 10mm.
- Case dimensions are: Outer dimension 33mm, Inner dimension 17.3mm and height is 12.6mm.
- Isat = 5,2 A
- There are 300 pcs. in a box
- Weight: One pcs. is 24 grams.
*Disclaimer: Values are nominal and are subject to change.
| House/Shape | Round Plastic |
|---|---|
| Outer diameter OD (mm) | 33 |
| Inner diameter ID (mm) | 17.3 |
| Height mm | 12.6 |
| Permeability | 12000 |
| Saturation Current Peak | 5.2 |
