D0030R60N01-01
Varenummer
D0030R60N01-01
Datasheet
Beskrivelse
Specification

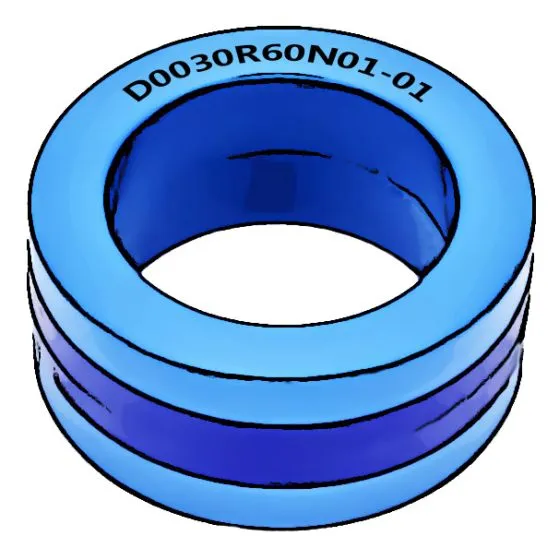

- This Round Core has a permeability of 60000.
- Core dimensions are: Outer dimension 20mm, inner dimension 20mm and the height is 10mm.
- Case dimensions are: Outer dimension 33mm, Inner dimension 17.3mm and height is 12.6mm.
- Isat = 1A
- There are 300 pcs. in a box
- Weight: One pcs. is 24 grams.
*Disclaimer: Values are nominal and are subject to change.
House/Shape | Round Plastic |
---|---|
Outer diameter OD (mm) | 33 |
Inner diameter ID (mm) | 17.3 |
Height mm | 12.6 |
Permeability | 60000 |
Saturation Current Peak | 1 |
