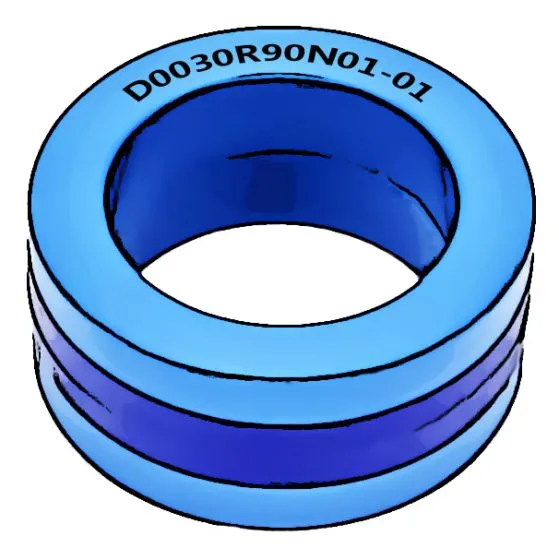

D0030R90N01-01
Varenummer
D0030R90N01-01
Datasheet
Beskrivelse
Specification
Morten Monberg
Business Development Manager
Phone: + 45 73 70 76 41
Email: mmo@dovitech.dk
Morten har en teknisk bagrund, og har i mere end 30 år arbejdet med induktive komponenter, magnetiske materialer, special legeringer og ædelmetaller. Han sidder klar til at hjælpe dig, og kommer gerne med gode råd.
- This round core has a permeability of 90000.
- Core dimensions are: Outer dimension 30 mm, inner dimension 20 mm and the height is 10 mm.
- Case dimensions are: Outer dimension 33 mm, Inner dimension 17,3 mm and the height is 12,6 mm.
- Isat = 0,7 A
- There are 300 pcs. in a box
- Weight: One pcs. is 24 grams.
Disclaimer: Values are nominal and are subject to change.
| House/Shape | Round Plastic |
|---|---|
| Outer diameter OD (mm) | 33 |
| Inner diameter ID (mm) | 17.3 |
| Height mm | 12.6 |
| Permeability | 90000 |
| Saturation Current Peak | 0.7 |
