D0040R04N01-02
Varenummer
D0040R04N01-02
Datasheet
Beskrivelse
Specification
Morten Monberg
Business Development Manager
Phone: + 45 73 70 76 41
Email: mmo@dovitech.dk
Morten har en teknisk bagrund, og har i mere end 30 år arbejdet med induktive komponenter, magnetiske materialer, special legeringer og ædelmetaller. Han sidder klar til at hjælpe dig, og kommer gerne med gode råd.

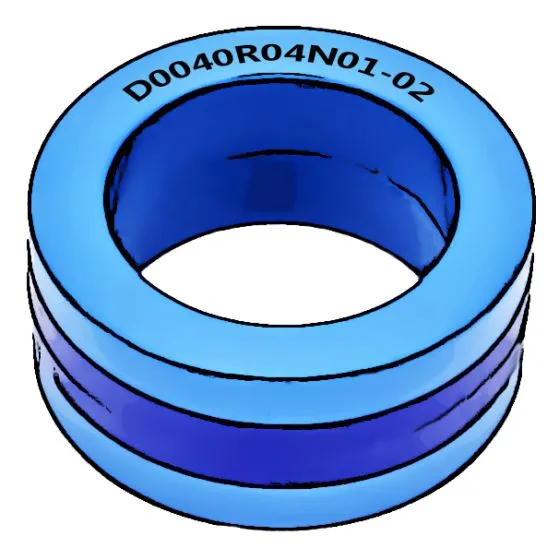

- This round core has a permeability of 4000.
- Core dimensions are: Outer dimension 40 mm, inner dimension 25 mm and the height is 15 mm.
- Case dimensions are: Outer dimension 44 mm, Inner dimension 22 mm and the height is 18.9 mm.
- Isat = 20 A
- There are 85 pcs. in a box
- Weight: One pcs. is 68 grams.
Disclaimer: Values are nominal and are subject to change.
| House/Shape | Round Plastic |
|---|---|
| Outer diameter OD (mm) | 44 |
| Inner diameter ID (mm) | 22 |
| Height mm | 18.9 |
| Permeability | 4000 |
| Saturation Current Peak | 20 |
