D0050O04N01-01
Varenummer
D0050O04N01-01
Datasheet
Beskrivelse
Specification
Morten Monberg
Business Development Manager
Phone: + 45 73 70 76 41
Email: mmo@dovitech.dk
Morten har en teknisk bagrund, og har i mere end 30 år arbejdet med induktive komponenter, magnetiske materialer, special legeringer og ædelmetaller. Han sidder klar til at hjælpe dig, og kommer gerne med gode råd.

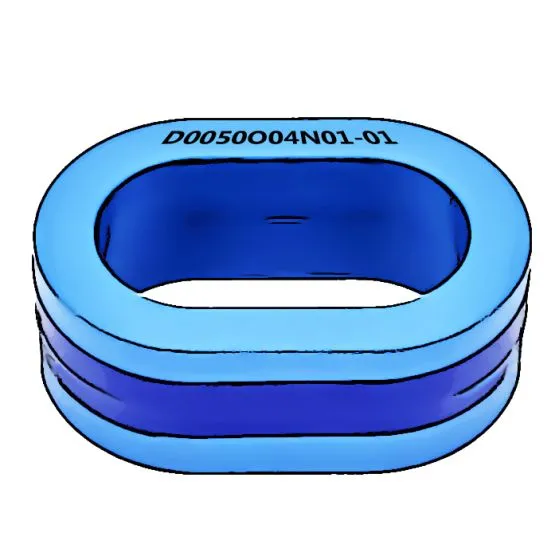

- This oval core has a permeability of 4000.
- Core dimensions are:
- Outer dimension 54.1 mm.
- Inner dimension 36.6 mm.
- Height: 20 mm.
- Case dimensions are:
- Outer dimension(OD1): 61 mm.
- Outer dimension(OD2): 40.7 mm.
- Inner dimension(ID1): 42.7 mm.
- Inner dimension(ID2): 24.8 mm.
- Height: 22.4 mm.
- Outer dimension(OD1): 61 mm.
- Isat = 28 A
- There are 60 pcs. in a box.
- Weight of one pcs is 100 grams.
*The Core dimension refer to the magnetic dimensions (outer diameter * inner diameter * height). In case of all other shapes than round, it is the equivalent round core size).
Disclaimer: Values are nominal and are subject to change.
| House/Shape | Oval Plastic |
|---|---|
| Outer diameter OD (mm) | 61 |
| Inner diameter ID (mm) | 42.7 |
| Outer diameter 2 OD2 (mm) | 40.7 |
| Inner diameter 2 ID2 (mm) | 24.8 |
| Height mm | 22.4 |
| Permeability | 4000 |
| Saturation Current Peak | 28 |
