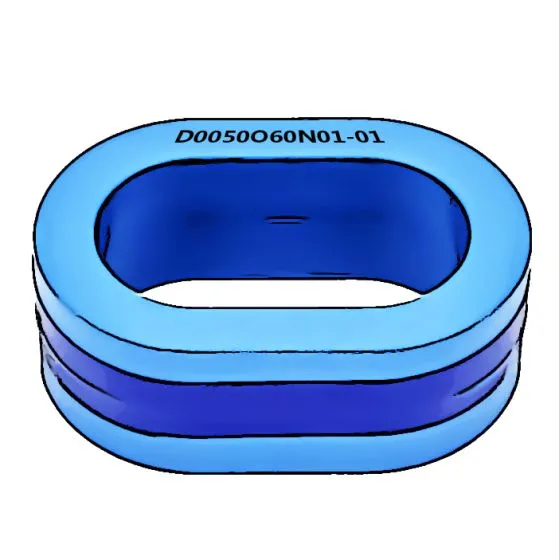

D0050O60N01-01

Varenummer
D0050O60N01-01
Datasheet
Beskrivelse
Specification
  • This oval core has a permeability of 60000.
  • Core dimensions are:
    • Outer dimension 54.1 mm.
    • Inner dimension 36.6 mm.
    • Height: 20 mm.

  • Case dimensions are:
    • Outer dimension(OD1): 61 mm.
      • Outer dimension(OD2): 40.7 mm.
    • Inner dimension(ID1): 42.7 mm.
      • Inner dimension(ID2): 24.8 mm.
      • Height: 22.4 mm.
  • Isat = 1.9 A



  • There are 60 pcs. in a box.
  • Weight of one pcs is 84 grams.



*The Core dimension refer to the magnetic dimensions (outer diameter * inner diameter * height). In case of all other shapes than round, it is the equivalent round core size).



Disclaimer: Values are nominal and are subject to change.

Specifikation
House/Shape Oval Plastic
Outer diameter OD (mm) 61
Inner diameter ID (mm) 42.7
Outer diameter 2 OD2 (mm) 40.7
Inner diameter 2 ID2 (mm) 24.8
Height mm 22.4
Permeability 60000
Saturation Current Peak 1.9
