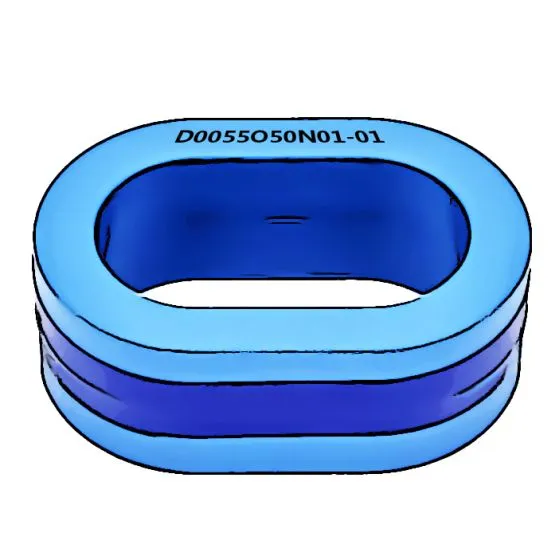

D0055O50N01-01

Varenummer
D0055O50N01-01
Datasheet
Beskrivelse
Specification
  • This oval core has a permeability of 50000.
  • Core dimensions are*:
    • Outer dimension 48 mm.
    • Inner dimension 35 mm.
    • Height: 15 mm.
  • Case dimensions are:
    • Outer dimension (OD1): 60 mm.
      • Outer dimension (OD2): 38 mm.
    • Inner dimension (ID1): 38.6 mm.
      • Inner dimension (ID2): 16.6 mm.
      • Height: 18.5 mm.
  • Isat = 2.3 A
  • There are 60 pcs. in a box.
  • Weight of one pcs. is 80 grams.



*The Core dimension refer to the magnetic dimensions (outer diameter * inner diameter * height). In case of all other shapes than round, it is the equivalent round core size).



Disclaimer: Values are nominal and are subject to change.

Specifikation
House/Shape Oval Plastic
Outer diameter OD (mm) 60
Inner diameter ID (mm) 38.6
Outer diameter 2 OD2 (mm) 38
Inner diameter 2 ID2 (mm) 16.6
Height mm 18.5
Permeability 50000
Saturation Current Peak 2.3
