D0055R30N01-01
Varenummer
D0055R30N01-01
Datasheet
Beskrivelse
Specification
Morten Monberg
Business Development Manager
Phone: + 45 73 70 76 41
Email: mmo@dovitech.dk
Morten har en teknisk bagrund, og har i mere end 30 år arbejdet med induktive komponenter, magnetiske materialer, special legeringer og ædelmetaller. Han sidder klar til at hjælpe dig, og kommer gerne med gode råd.
-

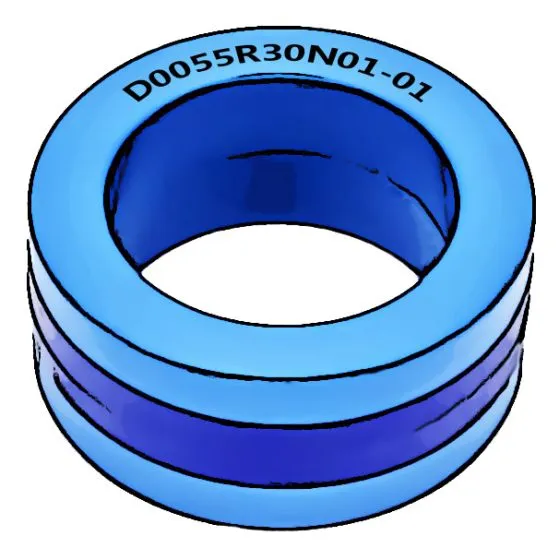

- This round core has a permeability of 30000.
- Core dimensions are: Outer dimension 55 mm, inner dimension 35 mm and the height is 20 mm.
- Case dimensions are: Outer dimension 60 mm, Inner dimension 30 mm and the height is 25 mm.
- Isat = 3.8 A
- There are 60 pcs. in a box
- Weight: One pcs. is 170 grams.
Disclaimer: Values are nominal and are subject to change.
| House/Shape | Round Plastic |
|---|---|
| Outer diameter OD (mm) | 60 |
| Inner diameter ID (mm) | 30 |
| Height mm | 25 |
| Permeability | 30000 |
| Saturation Current Peak | 3.8 |
