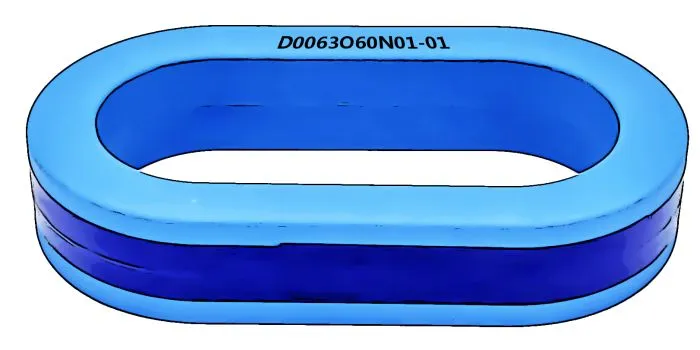

D0063O60N01-01

Varenummer
D0063O60N01-01
Datasheet
Beskrivelse
Specification
  • This oval core has a permeability of 60000.
  • Core dimensions are*:
    • Outer dimension 63 mm.
    • Inner dimension 50 mm.
    • Height: 30 mm.
  • Case dimensions are:
    • Outer dimension(OD1): 83 mm.
      • Outer dimension(OD2): 57.5 mm.
    • Inner dimension(ID1): 45.5 mm.
      • Inner dimension(ID2): 20.6 mm.
      • Height: 33 mm.
  • Isat = 2.4 A
  • There are 60 pcs. in a box.
  • Weight of one pcs is 200 grams.



*The Core dimension refer to the magnetic dimensions (outer diameter * inner diameter * height). In case of all other shapes than round, it is the equivalent round core size).



Disclaimer: Values are nominal and are subject to change.

Specifikation
House/Shape Oval Plastic
Outer diameter OD (mm) 83
Inner diameter ID (mm) 57.5
Outer diameter 2 OD2 (mm) 45.5
Inner diameter 2 ID2 (mm) 20.6
Height mm 33
Permeability 60000
Saturation Current Peak 2.4
