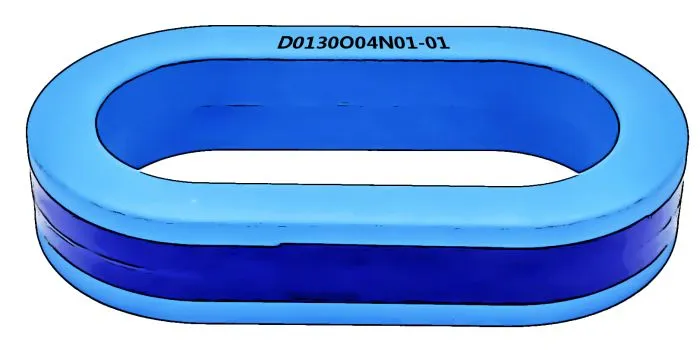

D0130O04N01-01

Varenummer
D0130O04N01-01
Datasheet
Beskrivelse
Specification
  • This oval core has a permeability of 4000.
  • Core dimensions are*:
    • Outer dimension 130 mm.
    • Inner dimension 100 mm.
    • Height: 30 mm.
  • Case dimensions are:
    • Outer dimension (OD1): 161 mm.
      • Outer dimension (OD2): 89 mm.
    • Inner dimension (ID1): 121 mm.
      • Inner dimension (ID2): 49 mm.
      • Height: 37 mm.
  • Isat = 72 A
  • There are 6 pcs. in a box.
  • Weight of one pcs. is 960 grams.



*The Core dimension refer to the magnetic dimensions (outer diameter * inner diameter * height). In case of all other shapes than round, it is the equivalent round core size).



Disclaimer: Values are nominal and are subject to change.

Specifikation
House/Shape Oval Plastic
Outer diameter OD (mm) 161
Inner diameter ID (mm) 121
Outer diameter 2 OD2 (mm) 89
Inner diameter 2 ID2 (mm) 49
Height mm 37
Permeability 4000
Saturation Current Peak 72
