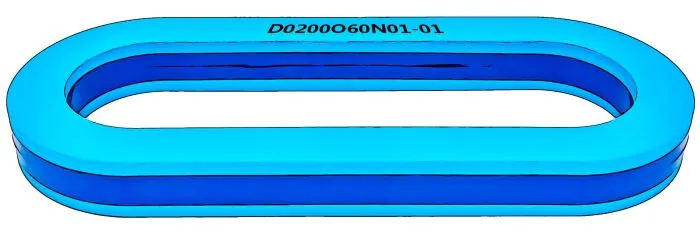

D0200O60N01-01
Varenummer
D0200O60N01-01
Datasheet
Beskrivelse
Specification
Morten Monberg
Business Development Manager
Phone: + 45 73 70 76 41
Email: mmo@dovitech.dk
Morten har en teknisk bagrund, og har i mere end 30 år arbejdet med induktive komponenter, magnetiske materialer, special legeringer og ædelmetaller. Han sidder klar til at hjælpe dig, og kommer gerne med gode råd.
- This oval core has a permeability of 60000.
- Core dimensions are*:
- Outer dimension 200 mm.
- Inner dimension 175 mm.
- Height: 30 mm.
- Case dimensions are:
- Outer dimension (OD1): 248 mm.
- Outer dimension (OD2): 138 mm.
- Inner dimension (ID1): 208 mm.
- Inner dimension (ID2): 98 mm.
- Height: 37 mm.
- Isat = 9.1 A
- There are 2 pcs. in a box.
- Weight of one pcs. is 1300 grams.
*The Core dimension refer to the magnetic dimensions (outer diameter * inner diameter * height). In case of all other shapes than round, it is the equivalent round core size).
Disclaimer: Values are nominal and are subject to change.
| House/Shape | Oval Plastic |
|---|---|
| Outer diameter OD (mm) | 248 |
| Inner diameter ID (mm) | 208 |
| Outer diameter 2 OD2 (mm) | 138 |
| Inner diameter 2 ID2 (mm) | 98 |
| Height mm | 37 |
| Permeability | 60000 |
| Saturation Current Peak | 7.8 |
